ELEKTRON-SXRF ASG 60/120 for loose products served in bulk, is used to detect foreign bodies in the form of particles of all metals, bones, stones, glass, hard plastic and even rubber. This X-Ray Scanner is equipped with a hopper with a feeder and a vibrator and a separator with 32 air nozzles (air shotgun), which precisely reject foreign bodies with a small amount of product. The device is used to test loose products served in bulk, for example cereal grains, groats, sugar, rice, etc. Our X-Ray scanners are able to detect particles of foreign bodies even from Φ 0.4 mm, which makes them one of the best scanners in the world.

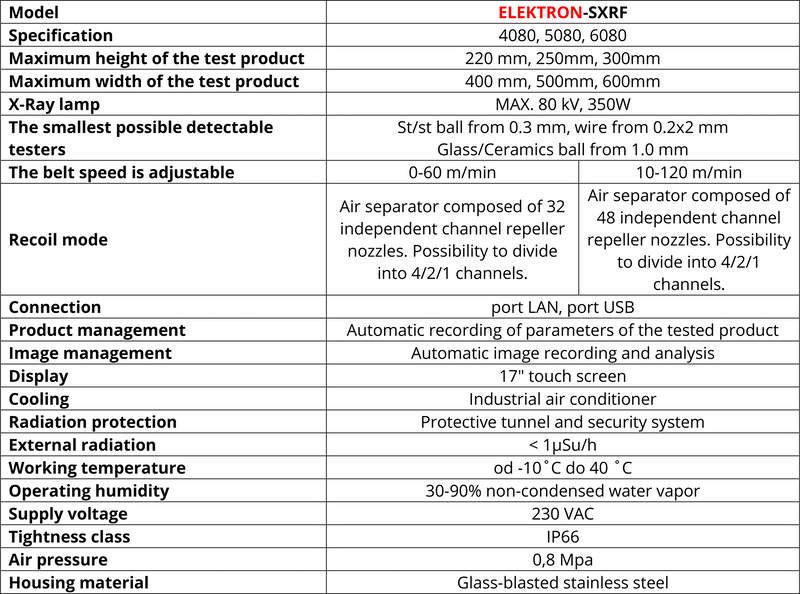

PARAMETERS
Model | ELEKTRON-SXRF | |
Specification | 4080 | |
Maximum height of the test product | 220 mm | |
Maximum width of the test product | 400 mm | |
X-Ray lamp | MAX. 80 kV, 350W | |
The smallest possible detectable testers | St/st ball from 0.3 mm, wire from 0.2x2 mm, Glass/Ceramic ball from 1.0 mm | |
Belt speed adjustable in the range | 0-60 m/min | |
Recoil mode | Air separator composed of 32 independent channel jets. Dividable into 4/2/1 channels. | Air separator composed of 48 independent channel jets. Dividable into 4/2/1 channels. |
Operating system | Windows 7 | |
Connection | LAN port, USB port | |
Product management | Automatic recording of the parameters of the tested product | |
Image management | Automatic image saving and analysis | |
Display | 17” touch screen | |
Cooling | Industrial air conditioner | |
Radiation protection | Protective tunnel and security system | |
External radiation | < 1µSu/h | |
Working temperature | od -10˚C do 40 ˚C | |
Working humidity | 30-90% non-condensed water vapor | |
Supply voltage | 230 VAC | |
Power consumption | 1500 W | |
Tightness class | IP66 | |
Air pressure | 0,8 Mpa | |
Housing material | Glass-blasted stainless steel |
APPLICATION
- frozen fruits and vegetables,
- seeds,
- sugar,
- rice,
- nuts,
- pea,
- almonds,
- coffee etc.
FOREIGN BODY DETECTED
MAIN FEATURE
- 24/7 remote technical support regardless of its location.
- The touch screen enables easy operation and management of functions (possibility to specify
manual parameter settings, which guarantees the highest level of detection) - Conveyor speed - 10-120m/min, adjustable depending on the specific product.
- Smooth management of each detection zone to improve the level and quality of scanning.
- Full range product inspection possible.
- Intuitive and very simple operation of the device.
- The highest possible level of detection and unprecedented stability of work when scanning products
of various shapes entering irregularly and even drifting.
ADDITIONAL ADVANTAGES
- Two levels of access to the program protected by a password.
- The operator has the ability to fully adjust the settings.
- Automatic product auto learn system.
- System of automatic diagnostics and security control (detection of open inspection door on the device and immediately stop the device and turn it off X-ray lamp radiation).
"FROST" SYSTEM
The X-Ray scanner can be equipped with a unique "FROST" system with a built-in intelligent heating system and a thermostat inside the control panel, which protects the internal electronics against moisture and cold. It is the only protection against rapid temperature changes during washing and protects against moisture absorption inside (for example, a cold machine washed with hot water).
SELECTING AN X-RAY SCANNER
The type and type of the X-Ray scanner are selected according to the customer's requirements. The product dimension must be entered in the detection cone according to the table below. |
Model | SXRF-4080 | SXRF-5080 | SXRF-6080 |
Product height (A) | Product width (B) | ||
0 mm | 400 mm | 500 mm | 600 mm |
10 mm | 390 mm | 489 mm | 589 mm |
20 mm | 380 mm | 477 mm | 576 mm |
30 mm | 371 mm | 466 mm | 564 mm |
40 mm | 361 mm | 455 mm | 552 mm |
50 mm | 351 mm | 443 mm | 540 mm |
60 mm | 341 mm | 432 mm | 528 mm |
70 mm | 331 mm | 420 mm | 515 mm |
80 mm | 322 mm | 409 mm | 503 mm |
90 mm | 312 mm | 398 mm | 490 mm |
100 mm | 302 mm | 386 mm | 478 mm |
110 mm | 292 mm | 375 mm | 466 mm |
120 mm | 282 mm | 363 mm | 454 mm |
130 mm | 272 mm | 352 mm | 441 mm |
140 mm | 263 mm | 340 mm | 429 mm |
150 mm | 253 mm | 329 mm | 417 mm |
160 mm | 244 mm | 218 mm | 405 mm |
170 mm | 234 mm | 307 mm | 393 mm |
180 mm | 224 mm | 295 mm | 380 mm |
190 mm | 214 mm | 284 mm | 368 mm |
200 mm | 204 mm | 272 mm | 356 mm |
210 mm | 194 mm | 261 mm | 344 mm |
220 mm | 185 mm | 250 mm | 331 mm |
230 mm | - | 239 mm | 319 mm |
240 mm | - | 227 mm | 307 mm |
250 mm | - | 216 mm | 295 mm |
260 mm | - | - | 282 mm |
280 mm | - | - | 258 mm |
300 mm | - | - | 233 mm |
LIST OF INDIVIDUAL COMPONENTS
FUNCTION | NAME | MANUFACTURER |
X-Ray source | X-Ray generator | VJ USA |
X-Ray receiver | X-Ray detector | DT FINLANDIA |
Device management | 17” touch screen | iEi |
Data processing | Industrial computer | TANK 820 |
Temperature and humidity control | Air conditioner | PFANNENBERG |
Conveyor belt drive | Gear motor | ORIENTAL MOTOR |
Speed adjustment | Inverter | YASKAWA/OMRON |
Electrical protection | Overcurrent circuit breakers | SCHNEIDER ELECTRIC /ABB |
Connection between devices | Military connectors | PLT |
Safety management | Limit switches | OMRON |
Automation management | PLC driver | OMRON |
Warning information | Optical-acoustic signaling device | SCHNEIDER ELECTRIC |
