DOWNLOAD THE PRODUCT CARD |  |

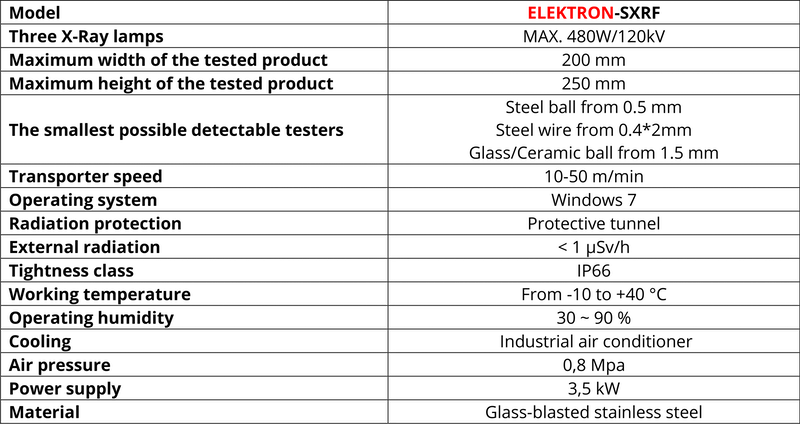

PARAMETERS
APPLICTATION
- products packaged in jars, e.g. pickled cucumbers, mushrooms in vinegar marinade, jams, sausages, etc.
- products packaged in tins, e.g. bean sprouts, peas, tinned fish, energy drinks, etc.
- products in plastic and glass bottles e.g. oil, milk, water, juices etc.
FOREIGN BODY DETECTED
MAIN FEATURE
- Two-lamp and two-receiver control system.
- Touchscreen for easy operation and management of functions (possibility to fine-tune manual parameter settings).
- Detection of glass in glass (bottles, jars) and metal in metal packaging (cans).
- Possibility of filling level testing.
- Possibility of applying a mask to exclude parts of the package not subject to inspection, e.g. bottle wall,increasing the detection level.
- High conveyor belt speed allows large volumes of product to be tested.
- Intuitive and very simple operation.
- Remote 24-hour service support regardless of location.
SYSTEM FUNCTIONS
- 2 password-protected access levels.
- The operator can manually adjust the settings.
- Detection of defective products with damage (deformed product, crumpled can, no product or defective product).
- Optional product weight check - the X-Ray scanner detects products with abnormal weight from as little as 1-5 g depending on product type.
- Quick and precise separation of contaminated or defective product.
- Automatic diagnostics and safety control system (detection of open inspection doors in the device and immediate stopping of the device and turning off the X-Ray lamp radiation).
„FROST” SYSTEM
The X-Ray scanner can be equipped with a unique "FROST" system with a built-in intelligent heating system and a thermostat inside the control panel, which protects the internal electronics against moisture and cold. It is the only protection against rapid temperature changes during washing and protects against moisture absorption inside (for example, a cold machine washed with hot water).

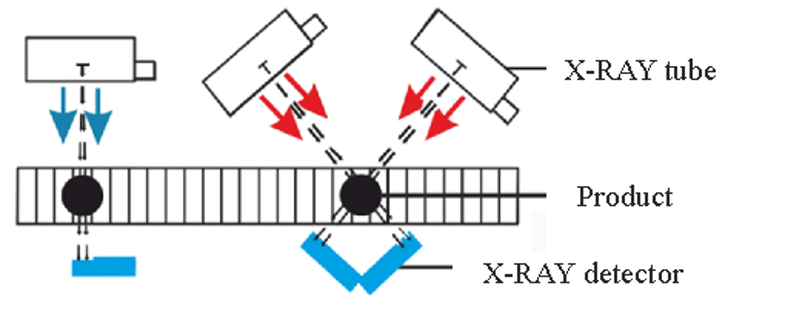

LAMP SETUP DIAGRAM
