The ELEKTRON-SXRF-4080 scanner with a feedback system has been designed for the inspection of chicken breast fillets. The product is scanned with a single-lamp X-Ray scanner to eliminate products contaminated with foreign bodies, in particular bones, metal particles, glass, stones, rubber or plastic. The rejection of contaminated products takes place through a double-track separator with scraper arms. Thanks to the well-thought-out design, the recoil system is very precise and ensures the highest quality. The scanner is equipped with the "RETURN" system that allows the rejected product to be redirected for re-inspection, so the separated product is transferred to the ascending conveyor and then to the inspection table.

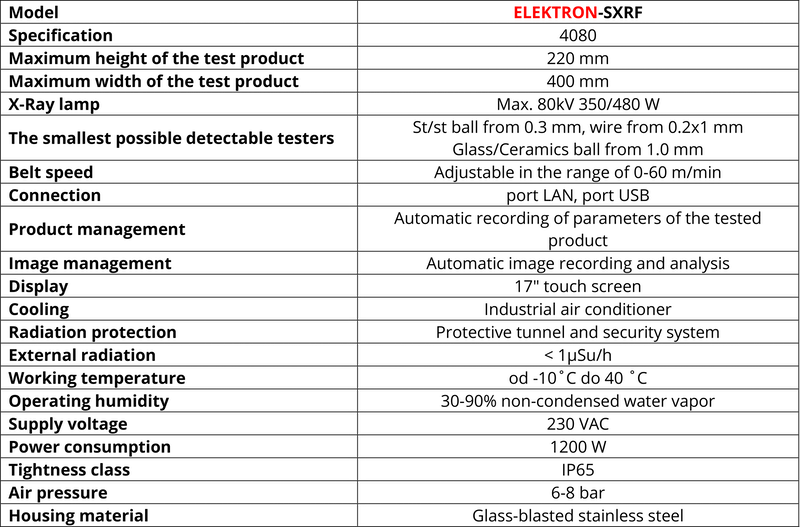

PARAMETERS
FOREIGN BODY DETECTED
MAIN FEATURE
- Very high level of detection and unparalleled operating stability when scanning products of different shapes entering irregularly or even drifting.
- Touchscreen for easy operation and management of functions (possibility to fine-tune manual parameter settings).
- Detection of all metals, stones, glass, ceramics, rubber, hard plastics.
- Intuitive and simple operation.
- Smooth management of each detection zone increasing the level and quality of scanning.
- Remote 24-hour service support regardless of location.
ADDITIONAL ADVANTAGES
- 2 password-protected access levels.
- The operator can manually adjust the settings.
- Detection of defective products with damage (deformed product, crumpled can, no product or defective product).
- Built-in weight controller - X-Ray scanner eliminates products with incorrect weight from 1-5 grams depending on the type of product.
- Possibility of cooperation with any separator.
- Automatic diagnostics and safety control system (detection of open inspection doors in the device and immediate stopping of the device and turning off the X-Ray lamp radiation).
„FROST” SYSTEM
The X-Ray scanner can be equipped with a unique "FROST" system with a built-in intelligent heating system and a thermostat inside the control panel, which protects the internal electronics against moisture and cold. It is the only protection against rapid temperature changes during washing and protects against moisture absorption inside (for example, a cold machine washed with hot water).
WE PROVIDE WARRANTY AND POST-WARRANTY SERVICE!
